Klassen

Datenbanksicht

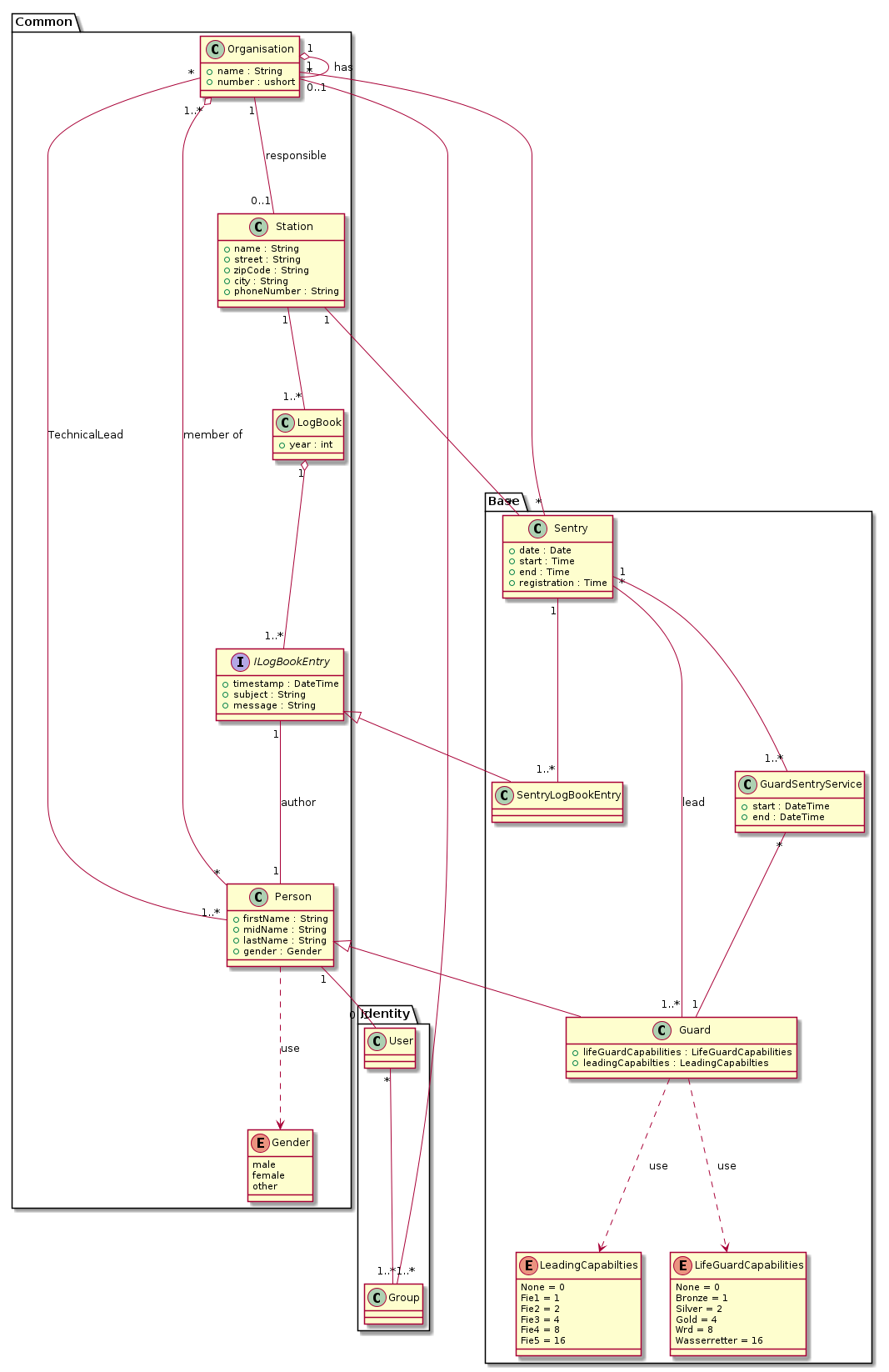

@startuml

package Common
{
    class Organisation
    {
        + name : String
        + number : ushort
    }

    enum Gender
    {
        male
        female
        other
    }

    class Person
    {
        + firstName : String
        + midName : String
        + lastName : String
        + gender : Gender
    }

    class Station
    {
        + name : String
        + street : String
        + zipCode : String
        + city : String
        + phoneNumber : String
    }

    class LogBook
    {
        + year : int
    }

    interface ILogBookEntry
    {
        + timestamp : DateTime
        + subject : String
        + message : String
    }
}

package Identity
{
    class User
    class Group
}

package Base
{
    enum LifeGuardCapabilities
    {
        None = 0
        Bronze = 1
        Silver = 2
        Gold = 4
        Wrd = 8
        Wasserretter = 16
    }

    enum LeadingCapabilties
    {
        None = 0
        Fie1 = 1
        Fie2 = 2
        Fie3 = 4
        Fie4 = 8
        Fie5 = 16
    }

    class Guard
    {
        + lifeGuardCapabilities : LifeGuardCapabilities
        + leadingCapabilties : LeadingCapabilties
    }

    class GuardSentryService
    {
        + start : DateTime
        + end : DateTime
    }

    class Sentry
    {
        + date : Date
        + start : Time
        + end : Time
        + registration : Time
    }

    class SentryLogBookEntry
    {

    }
}

Person "1" -- "0..1" User
Person ^-- Guard
Person ..> Gender : use

Organisation "0..1" -- "1..*" Group
Organisation "1" o-- "*" Organisation : has
Organisation "*" -- "1..*" Person : TechnicalLead
Organisation "1..*" o-- "*" Person : member of
Organisation "1" -- "0..1" Station : responsible

Station "1" -- "1..*" LogBook

LogBook "1" o-- "1..*" ILogBookEntry

ILogBookEntry "1" -- "1" Person : author
ILogBookEntry ^-- SentryLogBookEntry

Sentry "*" -- "1" Organisation
Sentry "*" -- "1..*" Guard : lead
Sentry "*" -- "1" Station
Sentry "1" -- "1..*" GuardSentryService
Sentry "1" -- "1..*" SentryLogBookEntry

Guard ..> LeadingCapabilties : use
Guard ..> LifeGuardCapabilities : use

GuardSentryService "*" -- "1" Guard

User "*" -- "1..*" Group

@enduml
